Prusaslicer User Interface

Prusaslicer User Interface



Prusaslicer User Interface

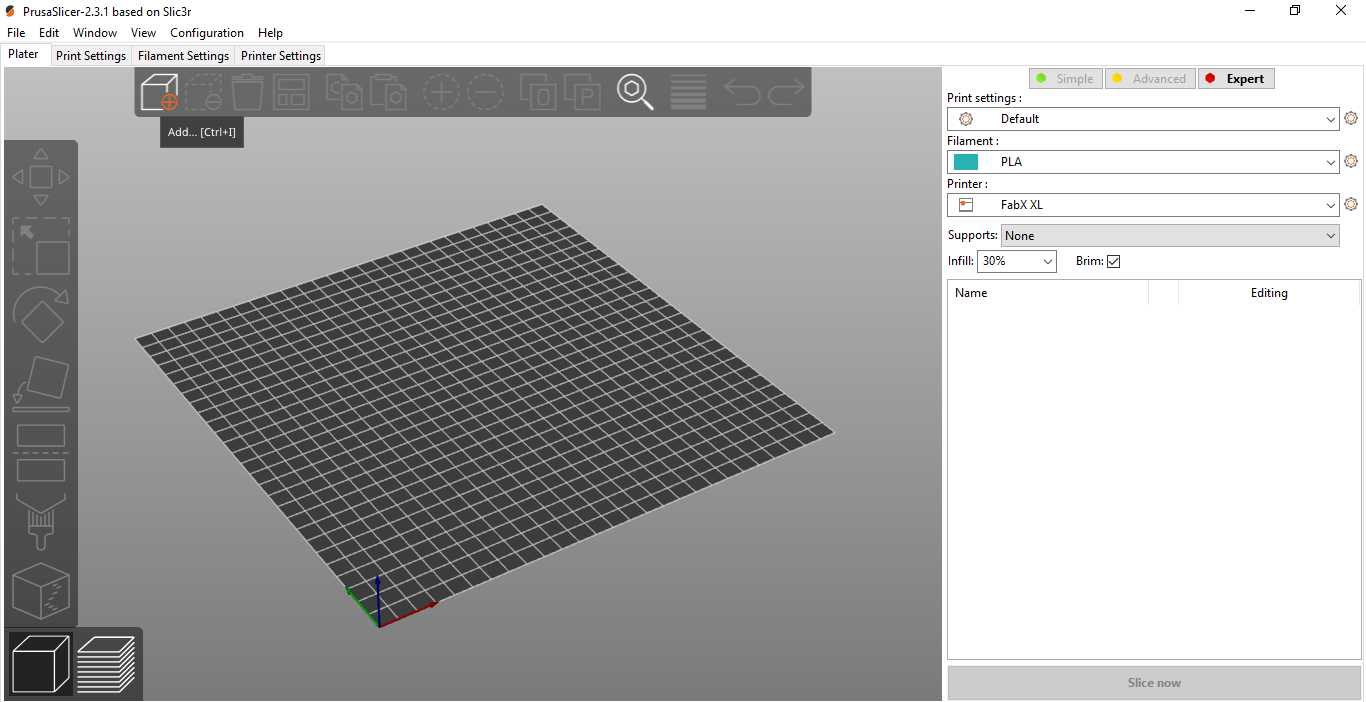

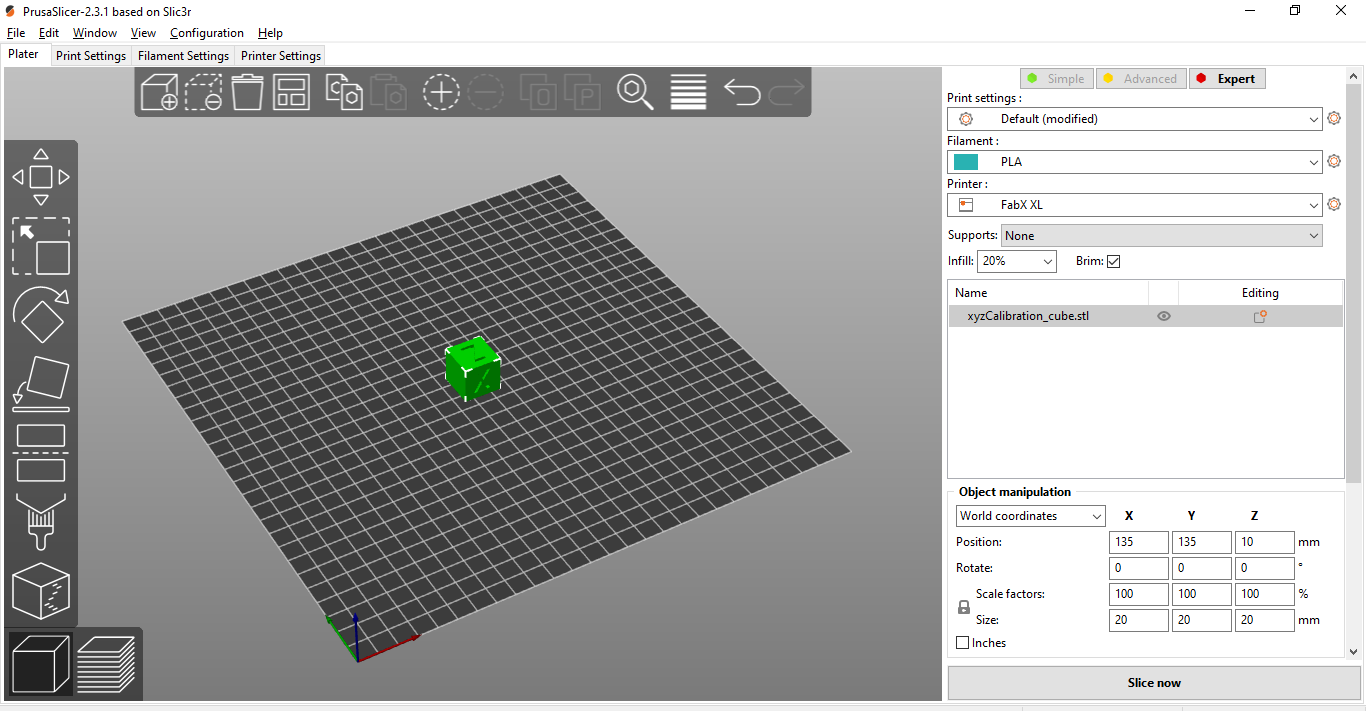

Step 1:  the object can insert by dragging into the prusaSlicer window or click add and import the stl from its location

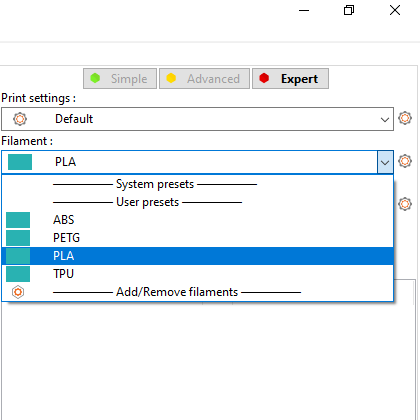

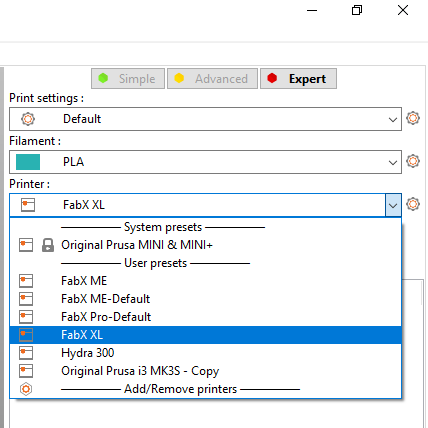

Step 2: Once the object is imported, select the filament and printer that need to select from the drop-down box on the right side

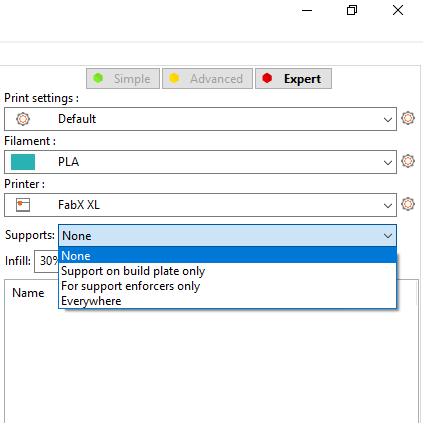

Step 3:  Select the support required for the object to be print.

In Support on built plate option, the support is generated only from the built plate to the object

In For support Enforces only option the supports are generated on the place requires supports are selected manually

In Everywhere option the supports are generated everywhere I,e Supports generated from the built plate as well as from the object


Step 4: Select the amount of the infill based on the purpose of the object



Step 5: Click Slice now in the right bottom to get the G-Code
